FTTH Sc to Sc Single Mode Fiber Optical Drop Wire Cable White Cable

Basic Info

Model NO.	CTF-PC
Brand	OEM
Sheath Material	PVC

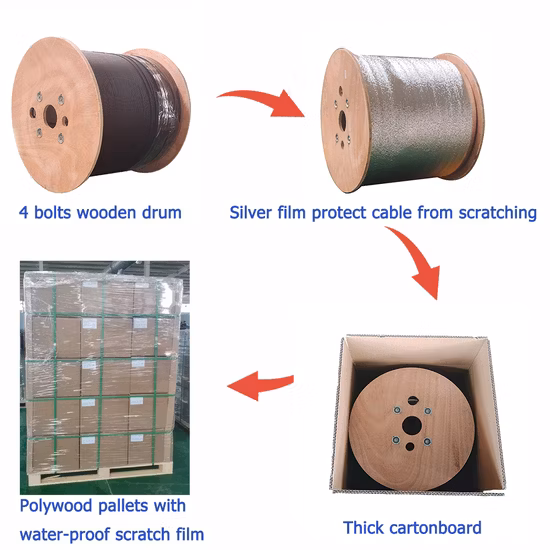

Transport Package	Polybag
Trademark	CTF
Origin	China
HS Code	85447000
Production Capacity	1000000/Year

Product Description

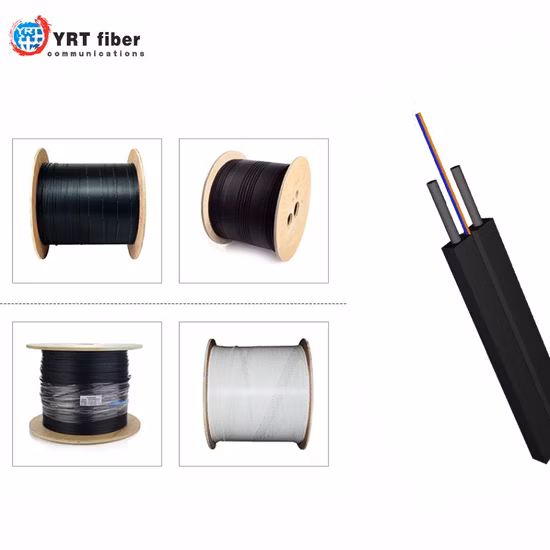

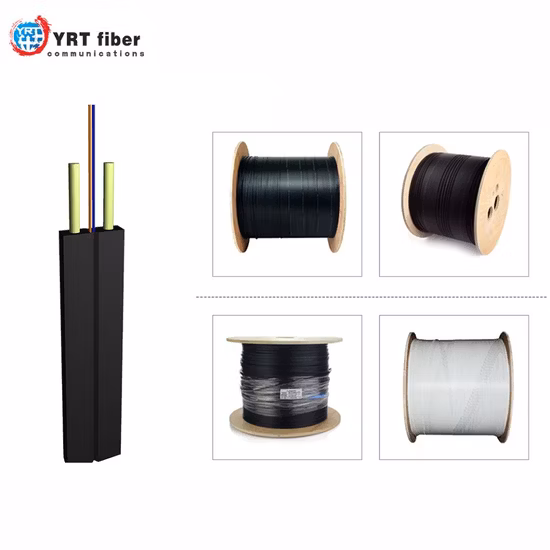

FTTH (Fiber to the home) drop cable

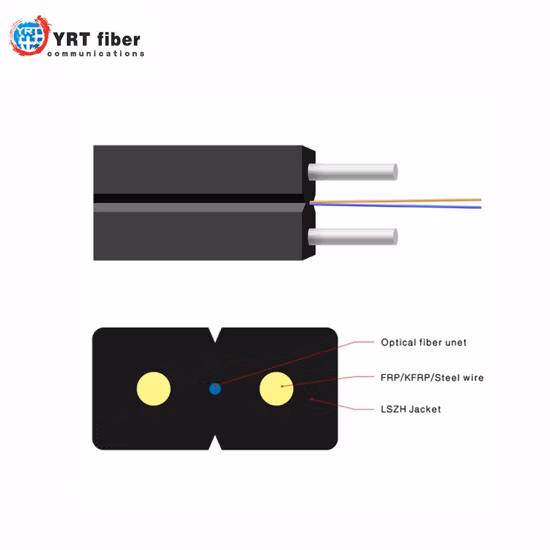

FTTH (Fiber to the home) drop cable, the outer skin is generally black and white, the diameter is relatively small, and the flexibility is good; the cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape. The fiber inside the cable is mostly G.657A2 small bending radius fiber, which can be laid at a bending radius of 20mm. It is suitable for entering the house by pipe or distribution openly. The unique 8-shaped structure of the drop cable can realize the field end in the shortest time.

Fiber Optic Patchcords Specifications:

Features:

Fiber Cable Jacket Color:
Singlemode: Yellow
Multimode: Orange : 82m in 10G network
OM3 : Aqua : 300m in 10G, 100m in 40G network
OM4 : Purple : 550m in 10G, 150m in 40G network
OM5 : Lime Green : 440m in 40G, 150m in 100G network

OM3 fiber patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
The OM3 50/125um Multimode fiber optic cable compliant to ISO/IEC standards.
They are used for 10Gbps networks to meet the requirement of continuous

Growing of high data rates.
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

Φ3.0, Φ2.0, Φ0.9

Φ3.0, Φ2.0, Φ0.9

Φ3.0, Φ2.0, Φ0.9

φ3.0, φ2.0, φ0.9

Ordering Information notice:

1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2. Ferrule End-face: PC, UPC, APC

3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4. Cable Quantity: "2C" means two cores

5. Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm

6. Cable Length: 1, 2, 3 meter or customized

7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
